BEL Marking Ltd offers an unrivalled range of Fibre and CO2 lasers from
In-line integrated, desktop, bench-top, hand-held and portable units.
Our Laser marking machines are used in the dynamics for high speed marking of logos, character, graphic, barcode and 2D Data Matrix marking.
We deliver one of the finest laser marking performance on all materials, including both metal and non-metal surfaces. The different types of laser marking equipment allow for high precision, high accuracy and inexpensive laser marking solutions.

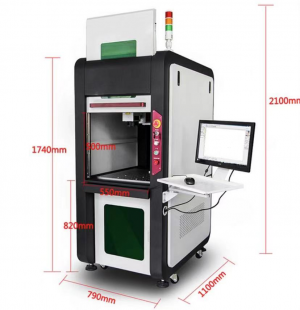

BEL A1

Model: BEL A1: 30W

Laser Wavelength (nm): 1060 to 1085

Average Output Power: (mj) 30W

Pulse Energy (mj): 1.0@20kHz

Repeat Frequency (kHz): 20 to 80

Pulse Width (ns): 130@20kz

Beam Quality (M2) <1.5

Spot Diameter (mm) 6~8

Power Adjustment Range: 10% to 100%

Long-Term Power Stability/8 Hours: <3%

Cooling Method; Cold

Working Temperature (°C): 0~40



Enquire!

Read more
BEL-FC30 Enclosed

Power 30W-50W

Product Name BEL Desktop Metal Fiber Laser Marking Machine.
Laser Brand Scotlaser
Laser Marking Machine Type Desktop, optional for portable mini laser marking devices items.
Laser Wavelength 1064nm
Device Marking Area 110mmx110mm
Optional Marking Area 210mmx210mm / 310mmx310mm
Laser Marking Depth ≤5mm(depending on the material and marking time).
Laser Marking Speed ≤7,000 mm/s
Minimum Line Width 0.01mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Marking 100,000 hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted.
System Operation Environment Windows XP / Win7(32/64bits) / Win8(32/64bits)/Win10.
Cooling Mode Built-in fan for Air cooling.
Power Input 220V-50HZ(single phase) or 110V-60HZ(single phase).

Enquire!

Read more
BEL-Hand Held

Power 10W 20W 30W 50W
Hand Held Fibre Laser.
Laser Brand Scotlaser
Laser Marking Machine Type Desktop, optional for portable mini laser marking devices items.
Laser Wavelength 1064nm
Device Marking Area 110mmx110mm
Optional Marking Area 210mmx210mm / 310mmx310mm
Laser Marking Depth ≤5mm(depending on the material and marking time).
Laser Marking Speed ≤7,000 mm/s
Minimum Line Width 0.01mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Marking 100,000 hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted.
System Operation Environment Windows XP / Win7(32/64bits) / Win8(32/64bits)/Win10.
Cooling Mode Built-in fan for Air cooling.
Power Input 220V-50HZ(single phase) or 110V-60HZ(single phase).

Enquire!

Read more
BM-PEL30 Portable Elevator Fibre Laser Marking Machine

Power 10W 20W 30W 50W
Desktop Fibre Laser
Laser Brand Scotlaser
Laser Marking Machine Type Desktop, optional for portable mini laser marking devices items.
Laser Wavelength 1064nm
Device Marking Area 110mmx110mm
Optional Marking Area 70mmx70mm/210mmx210mm / 310mmx310mm
Laser Marking Depth ≤5mm(depending on the material and marking time).
Laser Marking Speed ≤7,000 mm/s
Minimum Line Width 0.01mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life-span of Fiber Laser Marking 100,000 hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted.
System Operation Environment Windows XP / Win7(32/64bits) / Win8(32/64bits)/Win10.
Cooling Mode Built-in fan for Air cooling.
Power Input 220V-50HZ(single phase) or 110V-60HZ(single phase).

Enquire!

Read more
